DETAILED INTRODUCTION
Product overview and specifications

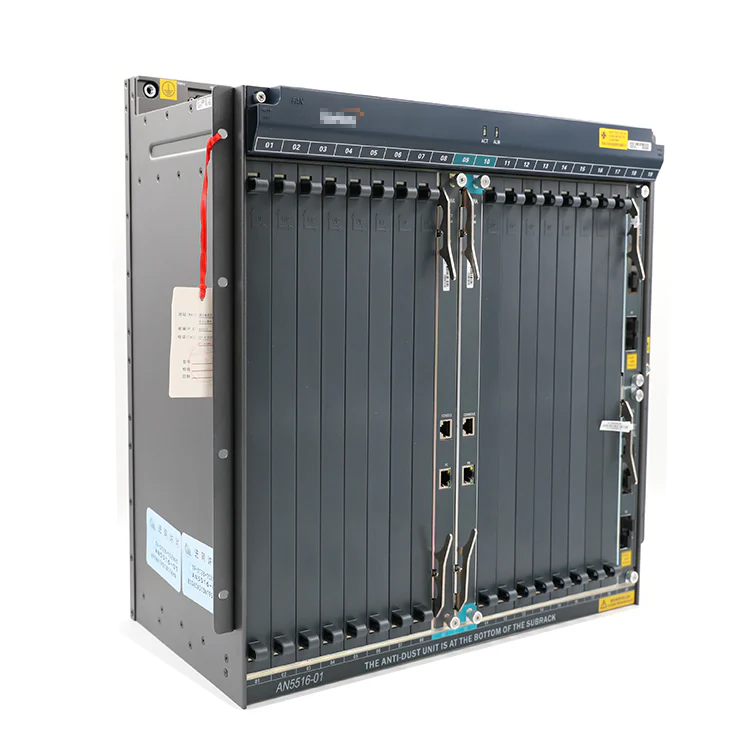

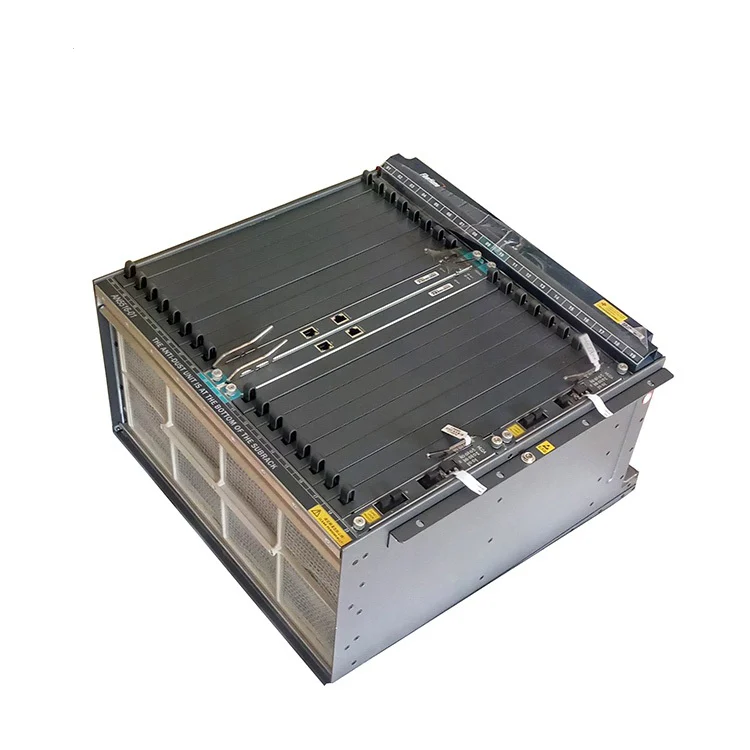

Fiberhome AN5516-01 Gpon OLT
Product Description:
The AN5516-01 has a strong adaptability to the environment and can be deployed quickly.In FTTx networks,the OLT is moved closer to the user side, which can save backbone optical cable resources.This solves the problem of a few users and long access distance, when FTTx services are applied in an area with a low population density.
AN5516-01 OLT configuration:
1 AN5516-01 Chassis
2 HSWA control board
2 PWR DC Power board (We also selling AC to DC(220V-48V) Power converter )
2 GU6F 1.25G Uplink board or HU1A/HU2A 10G Uplink board
1 GC8B 8Ports GPON baord with 8pcs SFP Module or EC8B 8Ports EPON Board with 8pcs SFP Module
1 GCOB 16Ports GPON baord with 16pcs SFP Module or ECOB 16Ports EPON Board with 16pcs SFP Module
1 FAN
Power cable & Accessories
Service boards:
8 ports 1G GPON board:GC8B
8 ports 1G EPON board:EC8B
16 ports 1G GPON board:GCOB
16 ports 1G EPON board:ECOB
Technique Parameter:
Characteristics | Descriptions | ||
AN5516-01 | AN5516-06 | AN5516-04 | |
Overall performance |
|
| |
Core switching capacity | 976G/bits | 400G/bits | 400G/bits |
Backplane bus switching capacity | 3.25TG/bits | 432G/bits | 80G/bits |
Transmission distance | 20KM | 20KM | 20KM |
Splitting ratio | 1:64 | 1:64 | 1:64 |
Core switching standby switchover time | <50ms | <50ms | <50ms |
Uplink card standby switchover time | <50ms | <50ms | <50ms |
Optical path protection switching time | <200ms | <200ms | <200ms |
Operation temperature | 0°C~+50°C | ||
DBA |
|
| |
Minimum bandwidth allocation granularity | ≤64kbit/s | ≤64kbit/s | ≤64kbit/s |
Configurable minimum bandwidth | ≤256kbit/s | ≤256kbit/s | ≤256kbit/s |
Precision | ±5% | ±5% | ±5% |
