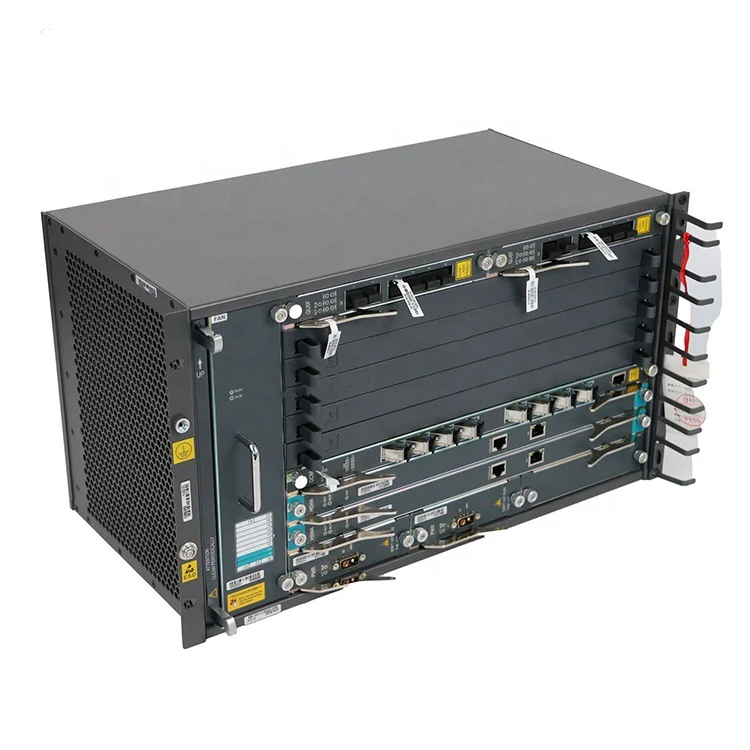

Fiberhome AN5516-06 Gpon OLT
Description:
The AN5516-06 is a MSAN / GPON integrated access product with intermediate capacity offered by FiberHome. It is compact carrier-class central office equipment. It caters for the requirements on networking for FTTH, FTTB, base station backhauling and private line services. It supports multiple services such as Vo IP, TDM, data, IPTV and CATV to meet the requirement of Triple-play. In addition, it is used together with the remote end ONU forming a complete convergence layer function.
Production Specification:

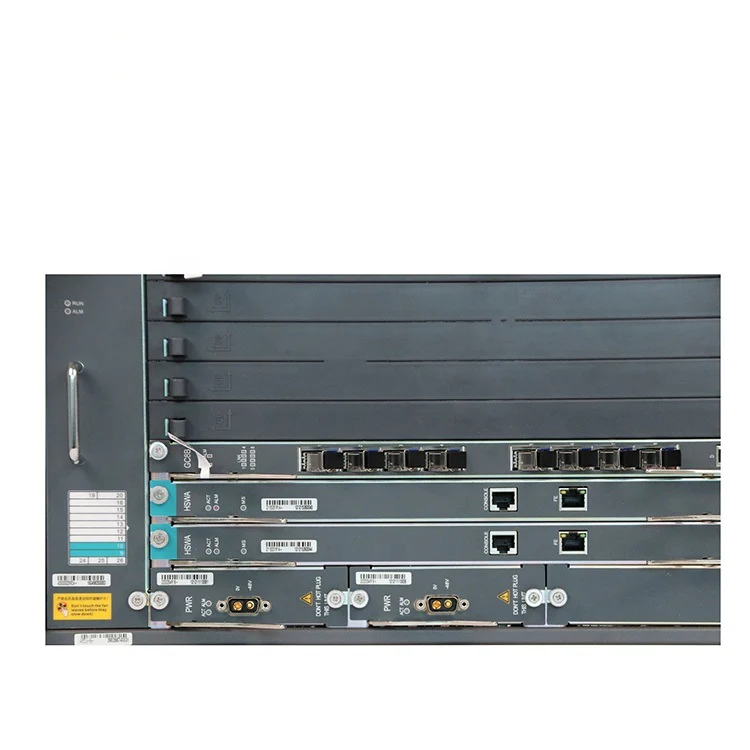

1 AN5516 Chassis
2 HSWA/HSUA control board
2 PWR DC Power board (We also selling 110V/220V To 48V )
1 GU6F/HU1A/HU2A Uplink board
1 GC8B 8Ports GPON baord with 8pcs SFP Module or EC8B 8Ports EPON Board with 1pcs SFP Module
1 GCOB Ports GPON baord with 16pcs SFP Module or ECOB 16Ports EPON Board with 16pcs SFP Module
1 FAN
Feature:
♦ Suitable for medium-sized density equipment users
♦ Dimensions (mm) 530W/265H/230D
♦ Total Slot: 10
♦ Service Slot: 6
♦ Switch card capacity: 976G
♦ Backplane bus capacity: 1.92T
♦ Support 96 PON high-density service card
♦ Unify platform of MSAN/DSLAM/EPON/GPON/10G PON/P2P
♦ Unify software and interface card sharing with AN5116-06B
Technique Parameter:
Characteristics | Descriptions | ||
AN5516-01 | AN5516-06 | AN5516-04 | |
Overall performance |
|
| |
Core switching capacity | 976G/bits | 400G/bits | 400G/bits |
Backplane bus switching capacity | 3.25TG/bits | 432G/bits | 80G/bits |
Transmission distance | 20KM | 20KM | 20KM |
Splitting ratio | 1:64 | 1:64 | 1:64 |
Core switching standby switchover time | <50ms | <50ms | <50ms |
Uplink card standby switchover time | <50ms | <50ms | <50ms |
Optical path protection switching time | <200ms | <200ms | <200ms |
Operation temperature | 0°C~+50°C | ||
DBA |
|
| |
Minimum bandwidth allocation granularity | ≤64kbit/s | ≤64kbit/s | ≤64kbit/s |
Configurable minimum bandwidth | ≤256kbit/s | ≤256kbit/s | ≤256kbit/s |
Precision | ±5% | ±5% | ±5% |
