Product overview and specifications

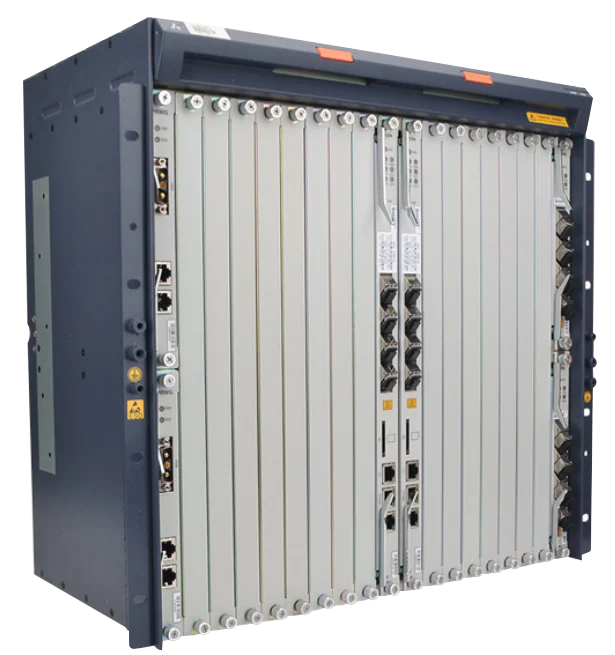

ZTE ZXA10 C300 GPON OLT
Product Description:
The ZXA10 C300 allows operators to offer end users high bandwidth, multiple services, QoS and security efficiently and achieve more network TCO reduction. It balances massive optical access roll-out and economy. It provides the stable technology and service platform for full-service access and management such as HSI, VoIP, TDM, IPTV, and mobile backhaul.
PON Features:
•GPON compliant with ITU G.984.x
•P2P compliant with ITU G.985/G.986
•XG-PON1 compliant with ITU G.987.x and G.988
•Support 1:128 optical split ratio for xPON
•Support OLS (Optical Laser Supervising )
•Max logical reach: 60km
•Max physical reach: 20km
•Max link difference: 20km
•High-efficient DBA: NSR-DBA,SR-DBA
•Synchronous Ethernet
•GPON Transceiver power: Class B+ or class C+
•XG PON1 Transceiver power: Class N1 and N2a
•Type B and type C optical uplink protection
•Support FEC
•Support AES128
•Support SCB
•GPON MCM(Multi-Copy Multicast)
•Support 1550nm for third party CATV broadcasting
Technical Specifications:
ZXA10 C300 has two sizes of frames: 21 inch frame and 19 inch frame.
ITEM | Specifications |
capacity | 21inch:Up to 16 service board |

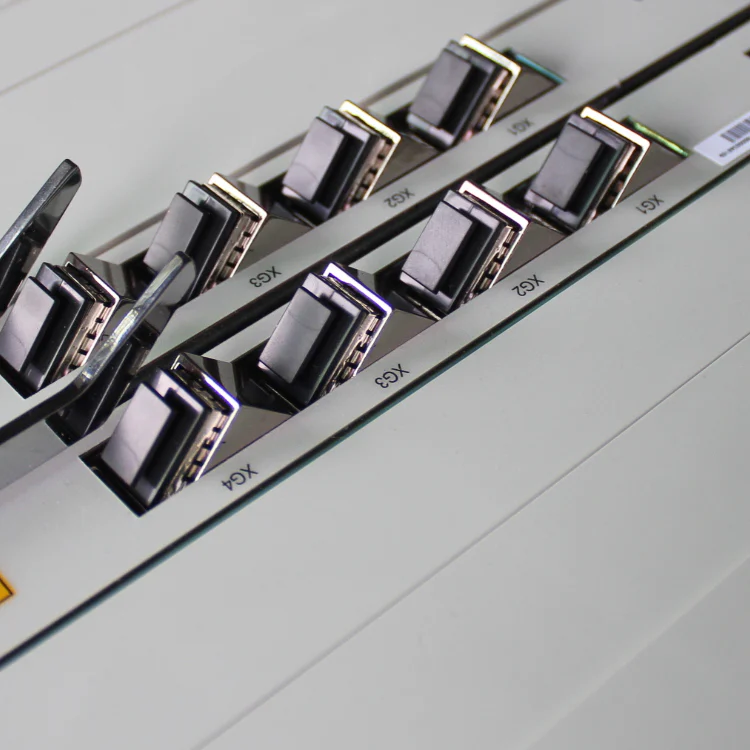

Uplink interface | GE/10GE/E1/T1/STM-1/STM-4 |
Service interface | EPON/GPON/P2P/10G-EPON/XG-PON1 |
Maximum splitter ratio | EPON 1：64；GPON 1:128；10G-EPON/XG-PON1 1:256 |
Transmission distance | >20KM |
Size | 21 inch:449.2mm (H) * 535mm (L) * 270mm (W) |
Voltage | DC：-48 V±20%，-60V±20% |
Working temperature | -25°C ~ 55°C |
Working humidity | 5% ~95%, non condensation |
