HG8342M Gpon ONT Datasheet
Product Description:
HG8342M GPON ONT, which is a leader in FTTH/ FTTO broadband access network field. They are properly manageable added with features such as high-bandwidth, high reliability, low power consumption and satisfy the users requirement to access broadband, voice, data and video etc.

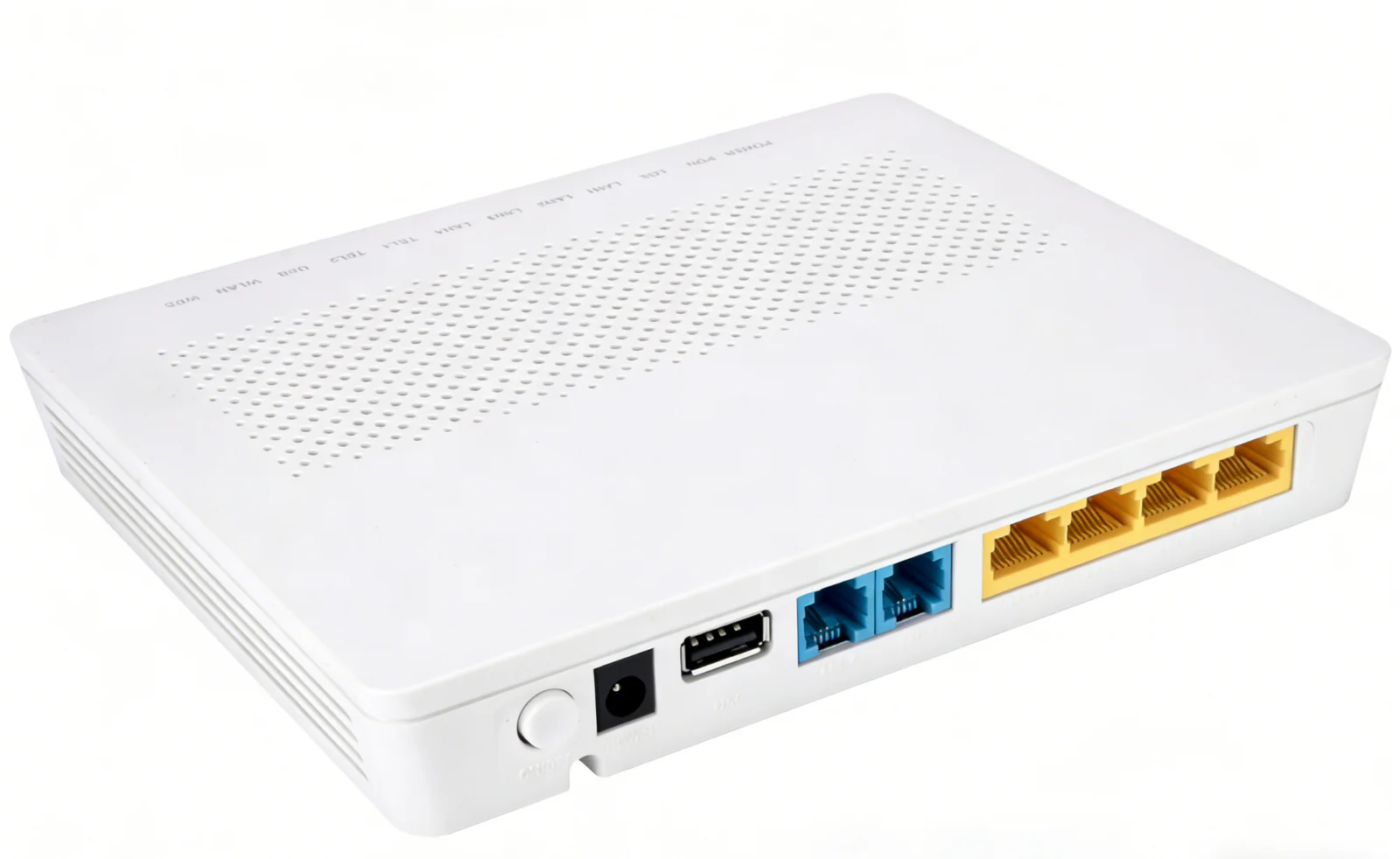

GPON ONU HG8342M with 4*FE ports+2*phone ports
The HG8342M, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.
The HG8342M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8342M provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
The HG8342M Provide English firmware and EU, US, UK, AU Power adapter for your choice.
Product Features :
GPON Interface: 1 *GPON interface (SC/UPC)
Transmission Rate: 2.488Gbps downstream and 1.244bps upstream
LAN: 4FE with RJ-45 connector
VOIP: 2
Technique Parameter:
Technical items | Descriptions |
Wavelength | Tx 1310nm, Rx 1490nm |
Fiber interface | SC/UPC |
RX sensitivity | <-27dBm (1490nm) |
WLAN | IEEE802.11b/g/n |
LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
Throughput | Downstream 950Mbps,Upstream 930Mbps |
ONT Detection and Isolation of Active/Passive Hooligans | YES |
DC power | Adapter input: 100-240 V AC, 50 - 60 Hz ; Adapter output: 11 – 14 V DC, 1 A |
Button | Reset, power |
Power | ≤8W |
Operation | Working temperature: -0-+40℃ working humidity:5-95%(non-condensation) |
Dimension | 280*230*80mm(length*width*height) |
Net weight | ≤0.8Kg |
