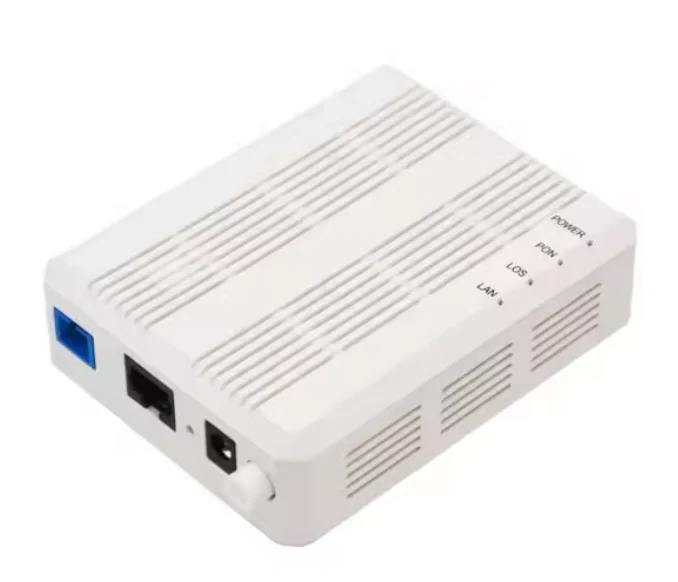

I-010G 1GE MINI GPON ONU Datasheet
Description:
I-010G GPON ONU is equipped with 2.5G rate downlink interface and 1.25G rate uplink interface conforming to ITU-T G.984 standard. It also provides management channel conforming to standard OMCI definition, which can realize remote management and support full range of FCAPS monitoring and maintenance Features
Features:
1.Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade, etc.
2.Integrated OMCI remote configuration and maintenance function.
3.Functions like transceiver diagnostic monitoring, transmitter disable, etc.
4.Fully compatibility with OLT based on Broadlight/Broadcom chipset.
5.Support port monitoring, port mirroring, port rate limiting, port SLA, etc.
6.Support auto polarity detection of Ethernet ports (AUTO MDIX)
7.Support router
8. 1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps) 1*10/100/1000M port
Port features:
*1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)
*1 10/100/1000M port
Physical features:
*Power supply: 12VDC
*Power consumption: 4W
*Dimension: 115mm*30mm*90mm(W*H*D)
*Net weight < 0.4Kg
Specification:
ITEM | SPECIFICATION |
| 10/100/1000base-tx; Interface: RJ45 |
PORTs | PON: SC/PC |
ETHERNET
| •10/100/1000M auto-negotiation •Full/half duplex mode •RJ45 connector •Auto MDI/MDI-X •100m distance |
Network
| •Support IEEE802.3 QAM, ONU can be remotely managed by OLT •Support Remote management through SNMP and Telnet •Support Be Remote updated by OLT |
Physical
| Dimension: 130mm X 100mm X 37mm; |
Weight: 100g | |
Temperature: 0~60°C; Relative Humidity: 10~90% | |
Power Adapter | Input: AC 110V~ AC 265V; Output: DC12V/0.5A |
