AN5506-02-B ONU 1GE+1FE+1POT Optical Network Terminal ONU Supplier

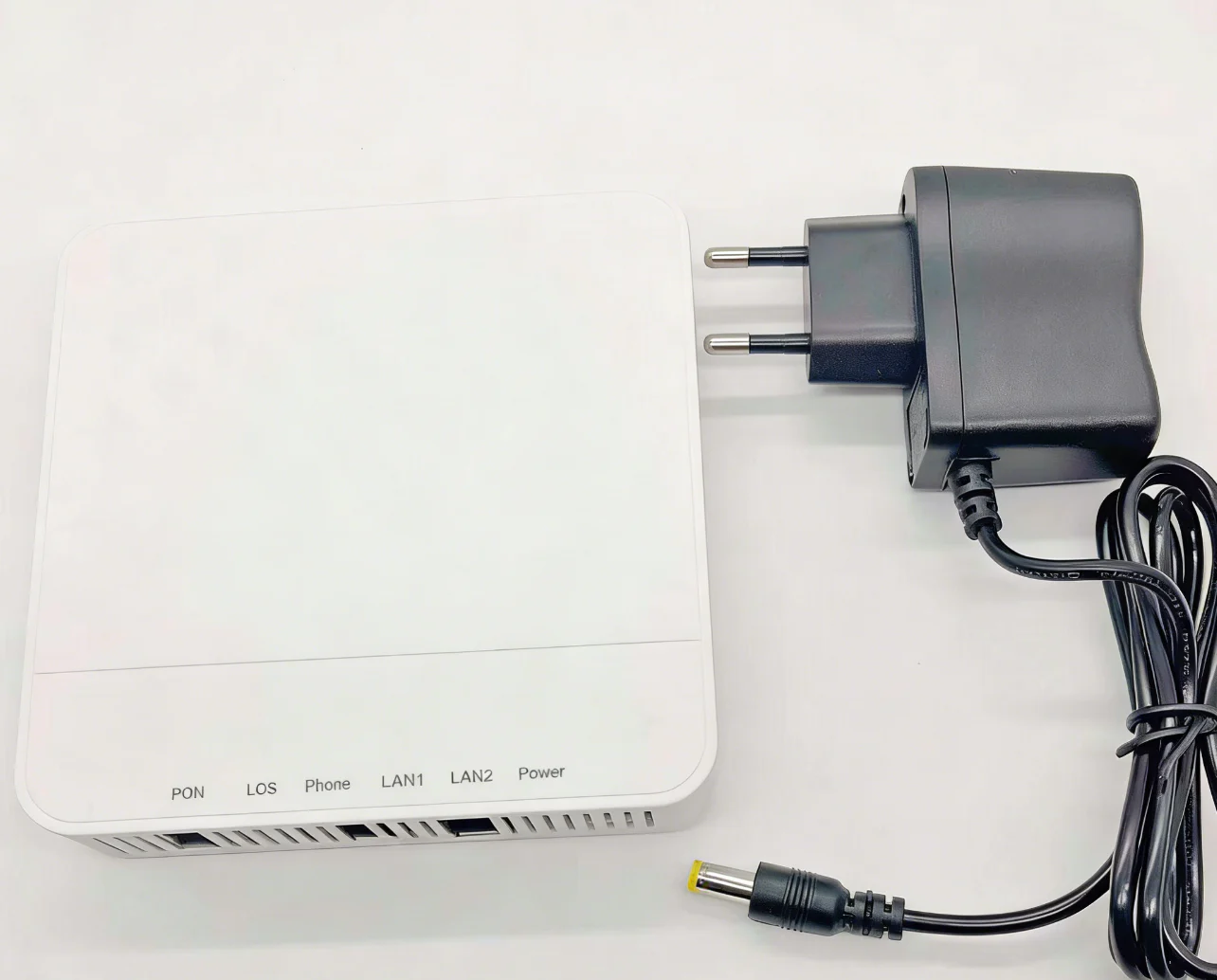

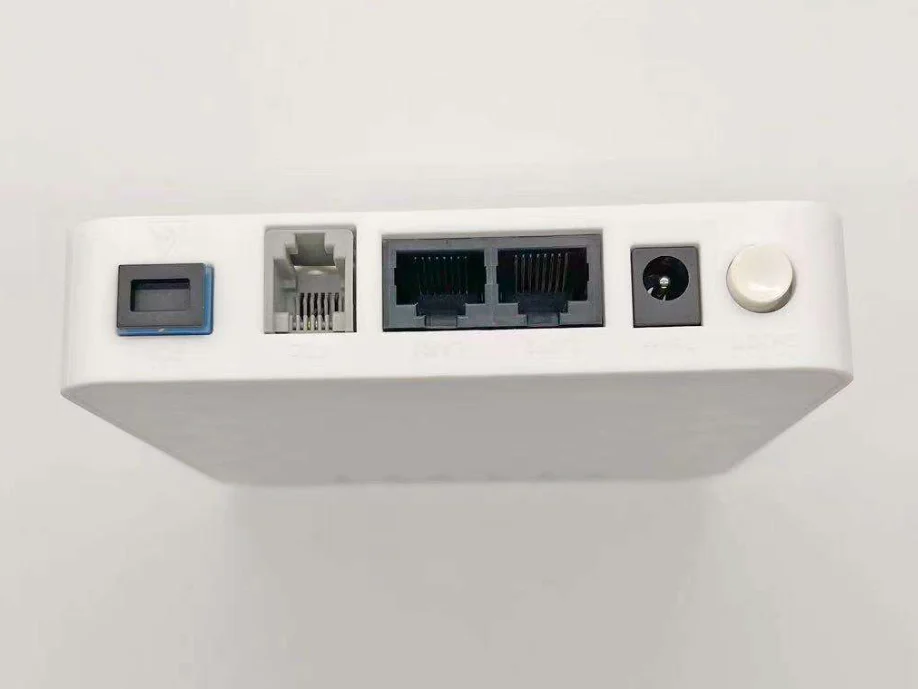

AN5506-02-B ONU 1GE+1FE+1POT Optical Network Terminal

PRODUCT ID399999CATEGORYONUAVAILABILITYInquiry open

FiberHome AN5506-02-B is a high-performance GPON ONT designed for FTTH scenarios, featuring 1GE + 1FE + 1POTS ports to support high-speed internet and voice services. With its compact, fanless design, it ensures stable, low-noise operation for home and SOHO use. Fully compatible with mainstream OLT devices, it enables plug-and-play deployment and reliable triple-play service delivery.

Product overview and specifications

AN5506-02-B Gpon Onu 1GE+1FE+1POT Datasheet

Product overview:

An5506-02-B FTTH is an FTTH GPON ONU. It provides users with communication and entertainment services in the form of data, voice, video, and so on, to meet the integrated access demand of families and small-scale enterprises. this model can be used together with the OLT equipment to make up a GPON system and access multiple services for users. The AN5506-02-B has the following characteristics.

Model No	Ethernet Ports	Router (PPPoE)	Firmware Language
AN5506-02B	1GE+1FE + 1 POTS	yes	English

Specifications:

Type	AN5506-01-A	AN5506-04-A	AN5506-02-B	AN5506-04-B
H/W/D	25.5×112×112	32×170×130	25.5×112×112	32×170×130
Uplink Interface	GPON	GPON	GPON	GPON
Downlink Interface	1*GE	4*FE/GE	1GE+1FE+1POTS（2GE+1POTS）	4*FE/GE
Downlink Interface	1*GE	4*FE/GE	1GE+1FE+1POTS（2GE+1POTS）	+2*POTS
Power Supply	AC：220V	AC：220V	AC：220V	AC：220V
Power Supply	DC:12V/0.5A	DC:12V/1A	DC:12V/1A	DC:12V/1A
Power	≤5W	≤8W	≤5W	≤10W
Lightning Protection	Power 4KV, user interface 1.5KV	Power 4KV, user interface 1.5KV	Power 4KV, user interface 1.5KV	Power 4KV, user interface 1.5KV
Operating Temperature	～45℃	～45℃	～45℃	～45℃
Ambient Humidity	～90%	～90%	～90%	～90%

Product Features:

An5506 02 B FTTH adopts the management based on TR-069 and OMCI, and supports TR-069 over OMCI. It can manage terminal services without IP network, which facilitates automatic provisioning, maintenance and management of services remotely.
An5506 02 B FTTH Supports configuring the global profile and delivering the XML configuration file on the network management system. Only a few changes are required to deliver the ONT services in a batch manner and make network adjustment.
An5506 02 B FTTH Supports configuring the user-defined upgrade policies on the network management system so that the equipment can be upgraded automatically after being powered on.
An5506 02 B FTTH Supports collecting performance data of the ONT remotely via the network management system to enable real-time monitoring of the network performance.
An5506 02 B FTTH Supports remote fault isolation for the ONT via the network management system. Faults can be isolated remotely according to the alarms reported to reduce the maintenance cost.

Product keywords and related features

FiberHome AN5506-02-BAN5506-02-BAN5506-02-B GPON ONTFiberhome OnuFiberhome gpon onuGpon onuGpon ONT1GE+1FE gpon onu2ports gpon onuPots gpon onu1GE 1FE 1POTS ONU，FTTH Optical ModemOptical Network Terminal
