AN5506-04-F 4GE+2Pots +Wifi Gpon Onu ONU Supplier

AN5506-04-F 4GE+2Pots +Wifi Gpon Onu

PRODUCT ID399996CATEGORYONUAVAILABILITYInquiry open

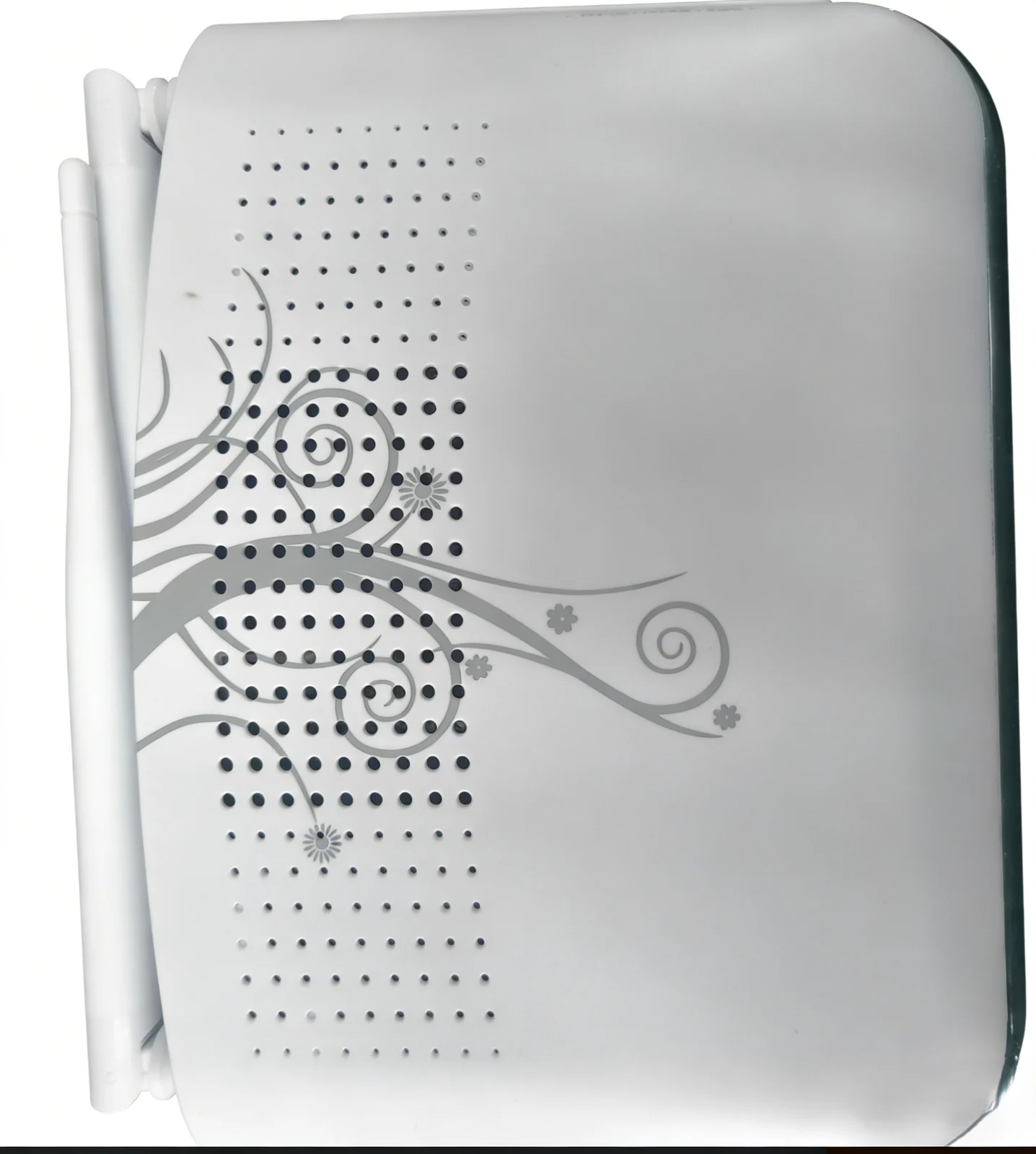

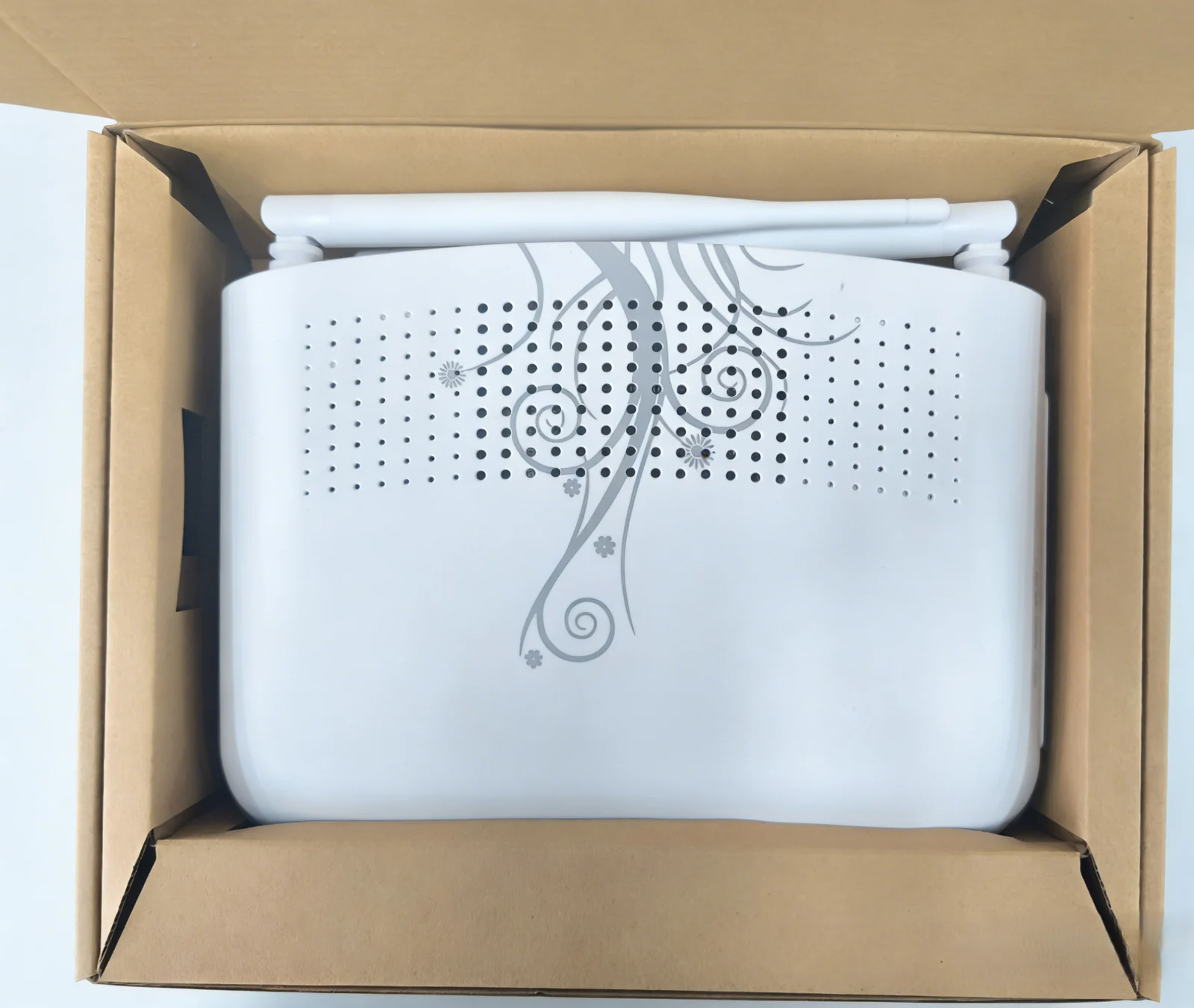

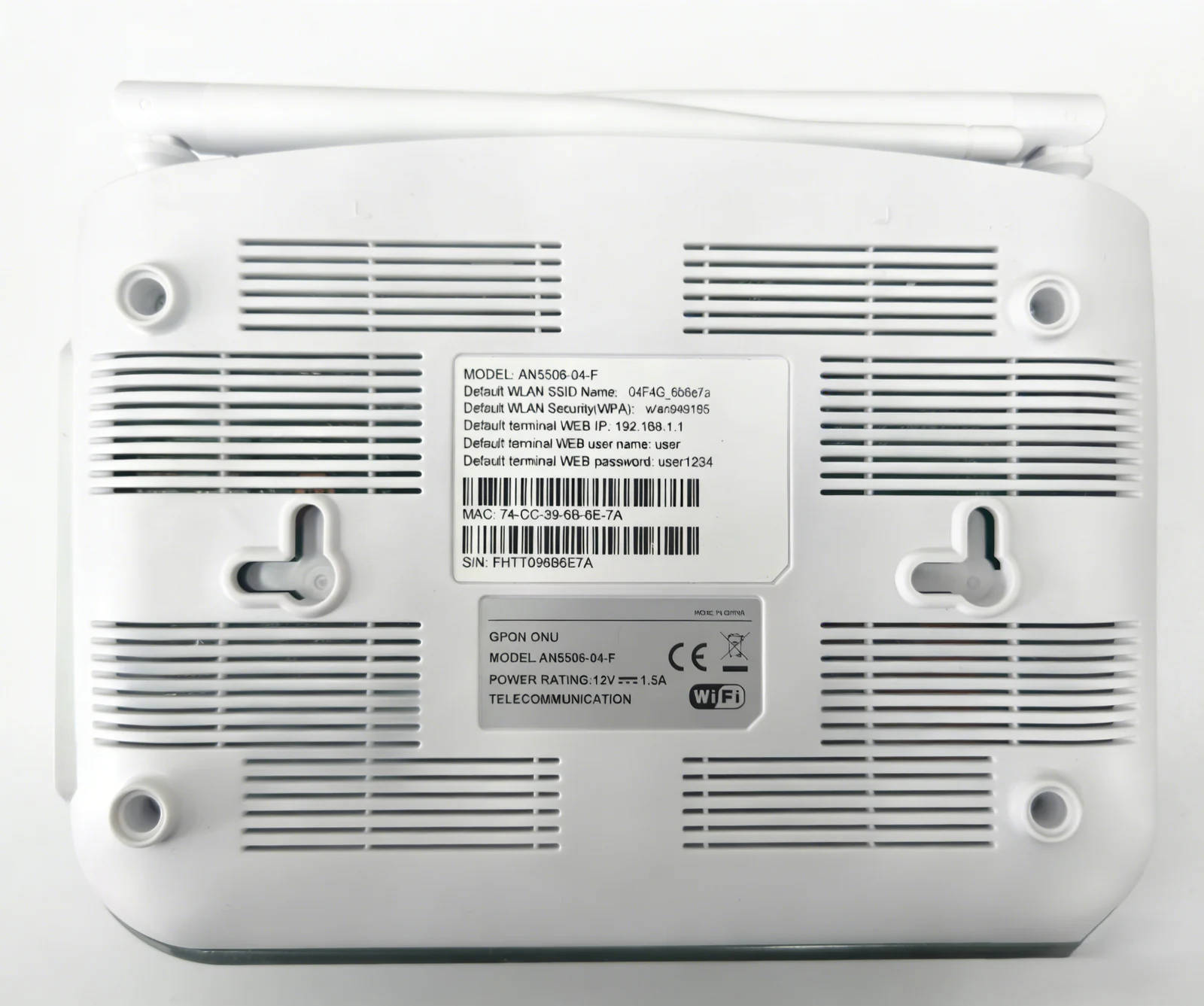

FiberHome AN5506-04-F is a full-featured GPON ONT designed for triple-play services, equipped with 4×GE ports, 2×POTS voice interfaces, and 2.4GHz WiFi. It delivers high-speed internet, reliable voice calls, and wireless coverage in one compact device, making it ideal for home, SOHO, and small business environments. With a fanless design, it ensures quiet, stable operation, and supports both bridge and routing modes for flexible deployment.Fully compatible with mainstream GPON OLTs.

Product overview and specifications

AN5506-04-F 4GE+2Pots +Wifi Gpon Onu Datasheet

This model has two types: one is AN5506-04-F1 and the other is AN5506-04-G1.

Both types can provide Ethernet interfaces, phone interfaces, and WiF¡ access.

Additionally, AN5506-04-G1 supports CATV interface port than F1.

Below is the differences between two types for fast reference.

Product Type	EthernetInterface	phone interface	CATV Interface	PowerInterface
AN5506-04-F1	4	2	–	1
AN5506-04-G1	4	2	1	Three-pin power jack

Product Specifications:


Model	AN5506 04 F
GPON Interface	1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
Other Interfaces	4x 10/100/1000 Base-T,2xPOTS,WiFi (2,4 GHz, 802.11b/g/n, WPA/WPA2,WPS),1xUSB
Operation Modes	Bridge, Router, AP
Wavelength for downstream	1480 nm – 1500 nm
Wavelength for upstream	1290 nm – 1330 nm
Sensitivity	-28 dBm
Power Consumption	7 W
Dimensions	180 mm x 38 mm x 127 mm
Working temperature and humidity	0°C – 40°C, 5% – 95%
Power	12 V DC
GPON features	8x T-CONT, 32 GEM port
Support	VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
Management	Local (WEB), OMCI, TR069

Product Features:

1, Easy for home broadband, e-government and office access with integrated access demands of broadband/voice/ data/video etc.

2, Various connection with multiple types of UNIs: GE/FE, POTS, Wi-Fi, CATV. The outdoor type of ONT with cast-aluminums shell adopts an industrial design.

3, Support user-friendly GUI with plug-in and play function instead of field configuration.

4, Provide a complete series of FTTH solutions for pure data, a double play, and triple-play services. Both in&outdoor types can be applied to meet the different application environment.

5, High-efficiency management and maintenance with port-based mode configuration as well as a port-based status query.

6, Carrier-class reliability in hardware/software and other system design to fully assure normal operation of equipment
