DETAILED INTRODUCTION
Product overview and specifications

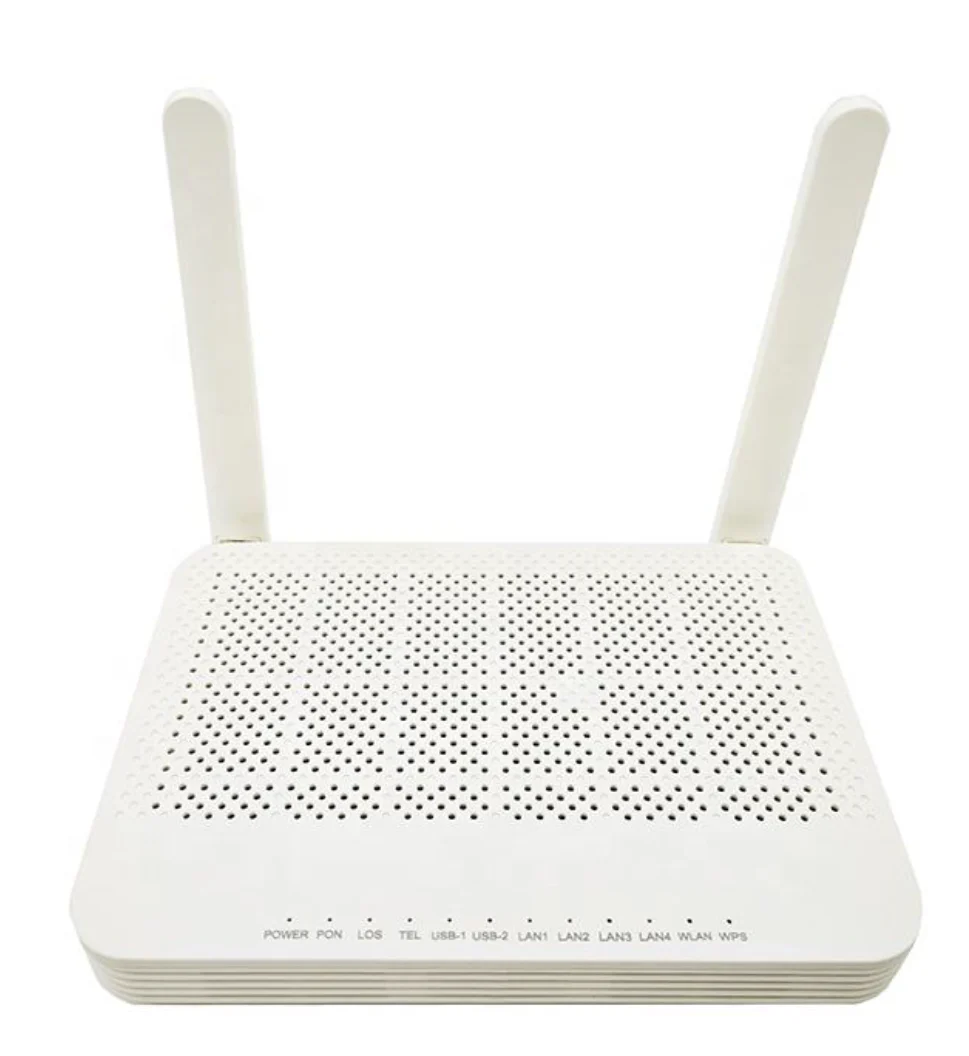

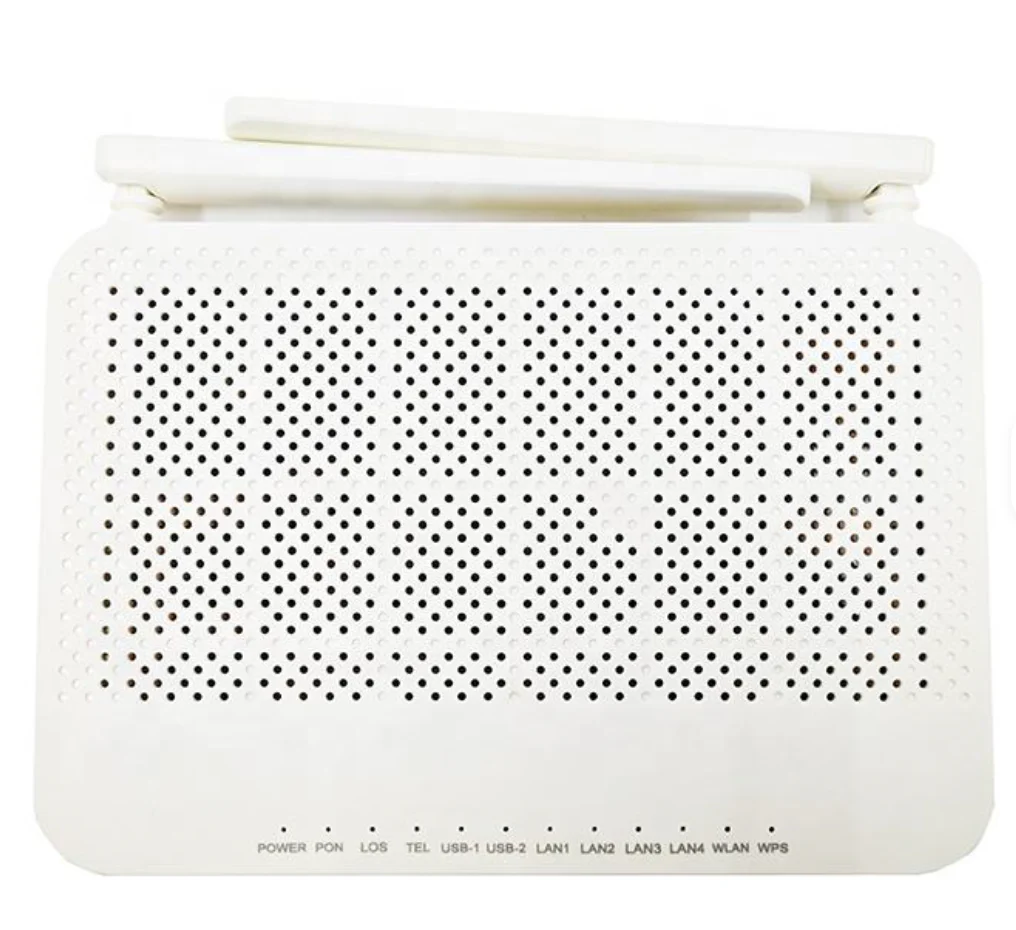

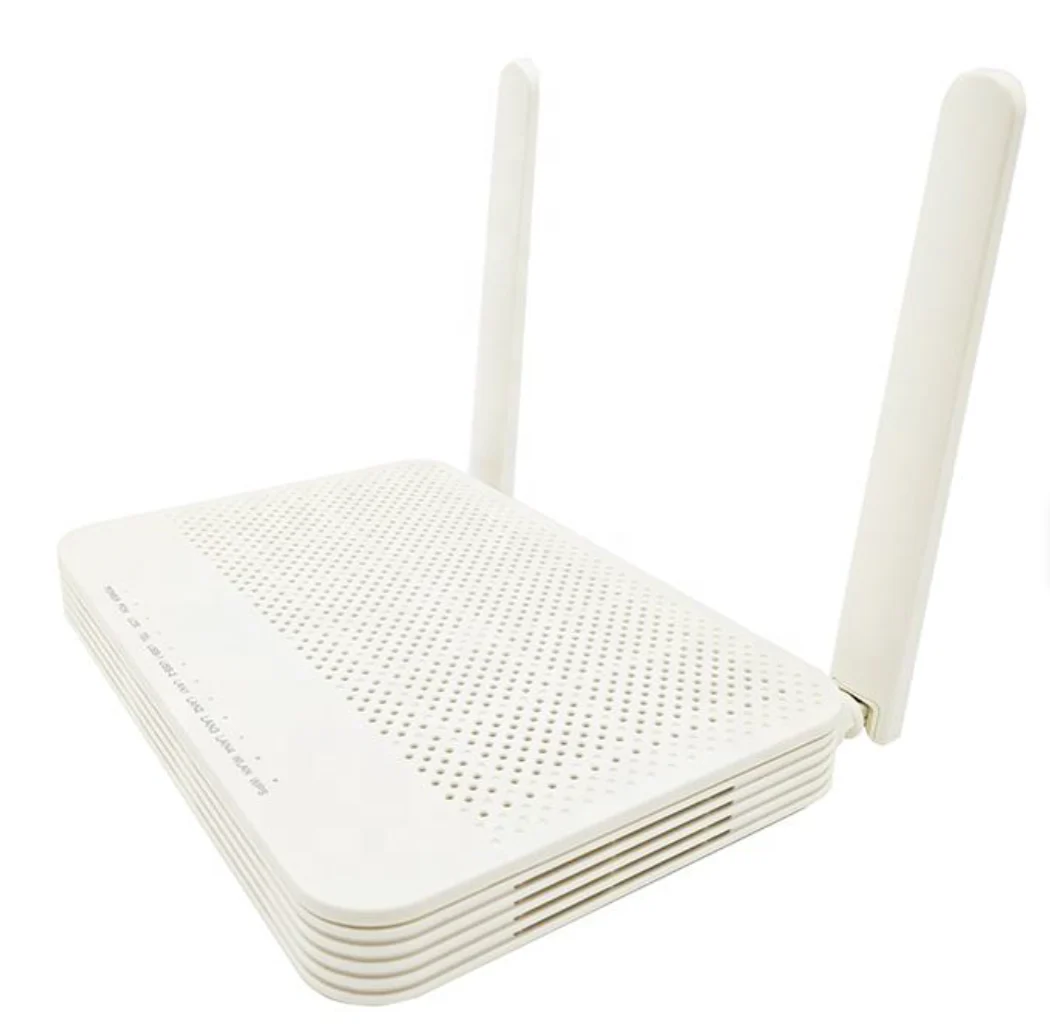

HG6821M 4GE+2USB+1POTS+ 2.4G/5G WIFI Gpon Onu Datasheet
Product Description
HG6812M is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.HG6821M provides an GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.
Product Description
Model | Configuration |
| ||||
| LAN | Telephone | Wifi | PPPOE | Firmware |
|
HG6821M | 4ports | 1pots | Yes 2.4G & 5G | yes | English |
|
Remarks | External Antenna | |||||
Product Features
Dimensions (H x W x D) (mm) | 220 mm x 160 mm x 32 mm | System power supply | 11–14 V DC, 0.5 A |
Weight | < 1000 g | Static power consumption | 7.5 W |
Operating temperature | 0°C to +40°C | Maximum power consumption | 18 W |
Operating humidity | 5% RH to 95% RH (non-condensing) | Ports | 4GE+2POTS+1CATV+1USB+Wi-Fi |
Power adapter input | 100–240 V AC, 50–60 Hz | Indicators | POWER/PON/LOS/LAN/TEL/USB /WLAN/WPS/CATV |
