AN5506-01-A 1GE Gpon ONU Datasheet
Description:

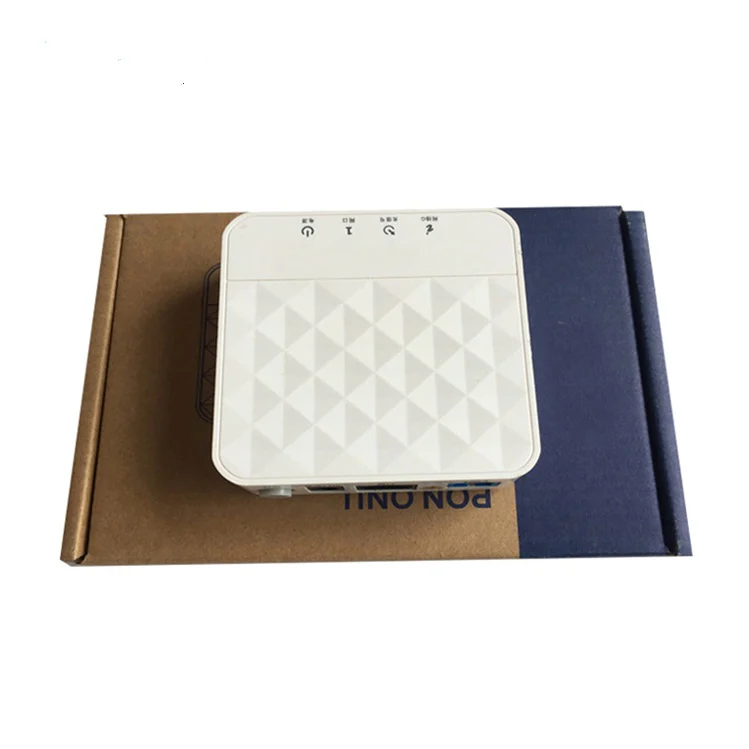

The AN5506-01-A is an FTTH-type GPON ONT
and It provides users and subscribers with easy communication and entertainment services
in the field of data, voice, video, and so on, so as to meet the integrated access demand
of families and small-size office.
The Spec are as below:
ONT Type | Ethernet Interface Quantity | POTS Interface Quantity | Wi-Fi Interface | USB Interface Quantity | CATV Interface |
AN5506-01-A | 1 (GE) | / | / | / | / |
An5506 01 A ONU Datasheet:
Type | AN5506-01-A |
H/W/D | 25.5×112×112 |
Uplink Interface | GPON |
Downlink Interface | 1*GE |
Power | ≤5W |
Lightning Protection | Power 4KV, user interface 1.5KV |
Operating Temperature | ～45℃ |
Ambient Humidity | ～90% |
Power Supply | AC：220V DC:12V/0.5A |
An5506 01 A ONU Feature:
An5506 01 A ONU gives support for the below service:
1, the configuration of Ethernet interface rate, working mode, MDI / MDIX adaptive mode and Pause flow control;
2, packet filtering and anti-illegal packet attack protection to suppress unknown unicast, broadcast, and multicast packets;
3, Ethernet line performance statistics function;
4, DHCP Option 60 to report the physical location information of the Ethernet interface;
5, H.248, MGCP and SIP, and other voice protocols;
6, Support IGMP Snooping; and STP / RSTP agreement;
GPON system downlink AES-128 algorithm for data encryption;
7, Dual-mode management based on DBA technology and priority to ensure that the user’s minimum specified bandwidth requirements:
FYI, AN5506-01 and AN5516-01 equipment (OLT) are used in conjunction to form GPON system, therefore to provide users with data, video and other means of communication and entertainment services to meet the family or small business integrated access needs.
Remarks: ONU/ONT family
Product without Wi-Fi | ||||
Type | AN5506-04-A | |||
H/W/D | 25.5×112×112 | 32×170×130 | 25.5×112×112 | 32×170×130 |
Uplink Interface | GPON | GPON | GPON | GPON |
Downlink Interface | 1*GE | 4*FE/GE | 1GE+1FE+1POTS（2GE+1POTS） | 4*FE/GE |
+2*POTS | ||||
Power Supply | AC：220V | AC：220V | AC：220V | AC：220V |
DC:12V/0.5A | DC:12V/1A | DC:12V/1A | DC:12V/1A | |
Power | ≤5W | ≤8W | ≤5W | ≤10W |
Lightning Protection | Power 4KV, user interface 1.5KV | Power 4KV, user interface 1.5KV | Power 4KV, user interface 1.5KV | Power 4KV, user interface 1.5KV |
Operating Temperature | ～45℃ | ～45℃ | ～45℃ | ～45℃ |
Ambient Humidity | ～90% | ～90% | ～90% | ～90% |
