F660/F623 1GE+3FE +1TEL +Wifi GPON ONT

Dimensions(DxWxH)

 (180x135x125)mm

System power supply

11V-14VDC,1A

Weight

<0.5kg

Static power consumption

5W

Operating temperature

0℃ to 40℃

Maximum power consumption

10W

Operating humidity

5%RH to 95% RH(non-condensing)

Ports

4FE RJ45+1RJ11+WIFI+USB

1*GPON

Power adapter input

100-240V AC,50-60HZ

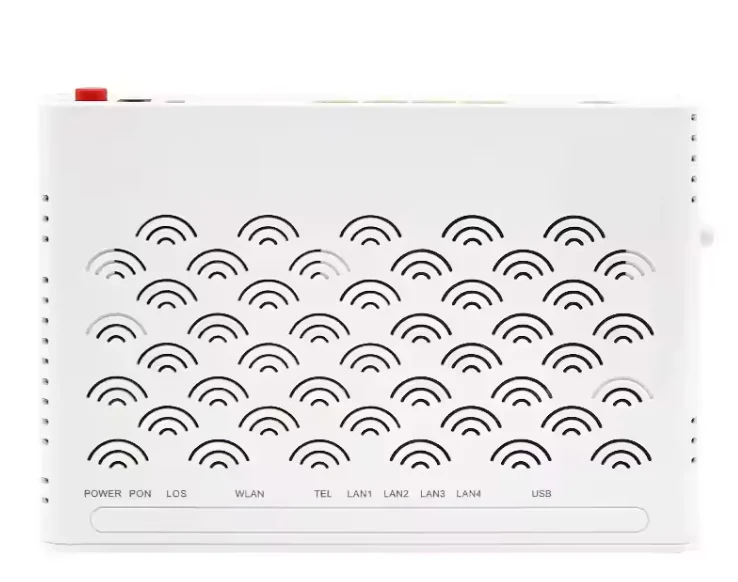

Idicators

POWER/PON/LAN/LOS/TEL/USB/WLAN/WPS

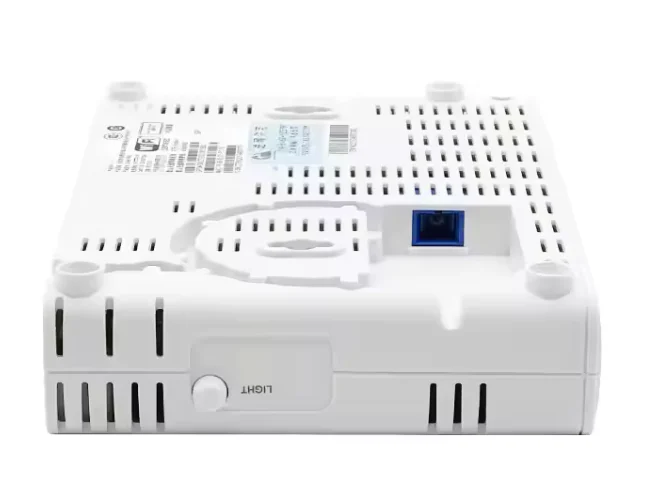

GPON Port

·Ethernet port-based vlan tags and tag removal

·Class B+

·Receiver sensitivity:-27dBm

·Wavelengths:US 1310nm,DS 1490nm

·Wavelength blocking filter(WBF)

·Flexible mapping between GEM Port and TCONT

·GPON:consistent with the SN or password

authentication defined in G.984.3

·Bi-directional FEC

·SR-DBA and NSR-DBA

Ethernet Port

·Ethernet port-based vlan tags and tag removal

·1:1VLAN,N:1 VLAN,or VLAN transparent transmission

·QinQ VLAN

·Limit on the number of learned MAC address

·MAC address learning

·Transparent transmission of IPv6 packets at layer 2

POTS Port

· Maximum REN: 4

·G.711A/μ, G.729a/b, and G.722

encoding/decoding

·T.30/T.38/G.711 fax mode

· DTMF

· Emergency calls (with the SIP

protocol)

USB Port

·USB2.0

· FTP-based network storage

WLAN

IEEE 802.11 b/g/n

·2 x 2 MIMO

·Antenna gain: 2 dBi

· WMM

·Multiple SSIDs

· WPS

Smart Service

· Smart Wi-Fi sharing:

·Portal/802.1x authentication

·SoftGRE-based sharing

· Association of one account with two POTS ports

Smart interconnection

· Smart Wi-Fi coverage

· SIP/H.248 auto-negotiation

·Any port any service

·Parental control (V300R015C00)

· L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Layer 3 Features

·PPPoE/Static IP/DHCP

· NAT/NAPT

· Port forwarding

· ALG, UPnP

· DDNS/DNS server/DNS client

· IPv6/IPv4 dual stack, and DS-Lite

· Static/Default routes

· Multiple services on one WAN port

QoS

· Ethernet port rate limitation

·802.1p priority

·SP/WRR/SP+WRR

· Broadcast packet rate limitation

· Flow mapping based on the VLAN ID,port ID, or/and 802.1p

Security

· SPI firewall

· Filtering based on

MAC/IP/URL addresses

Power Saving

· Indicator power saving

·Power consumption reduction of idle components in power-saving state

· COCv4

Smart O&M

· Variable-length OMCI messages

· Active/Passive rogue ONT detection and isolation

· PPPoE/DHCP simulation testing

· Call emulation, and circuit test and loop-line test

Common O&M

·OMCI/Web UI

· Dual-system software backup and rollback

·802.1ag Ethernet OAM

· Optical link measurement and diagnosis

·Loopback check

Multicast

·IGMP v1/v2 snooping

· MLD v1/v2 snooping

· Fast leave

·VLAN tag translation, transparent transmission, and removal for downstream multicast packets

· IGMP/MLD protocol packet rate limitation

Power Saving

· Dynamic power saving

· Indicator power saving

· Scheduled Wi-Fi shutdown

Type

describe

F623

1*GPON(1490nm Rx,1310nm Tx,20Km,SC), 4*FE RJ45,1*Pots,2*2T2R WIFI,12V 1A Power supply,1*USB
