DETAILED INTRODUCTION
Product overview and specifications
HG8346R/HG8245A Wifi Gpon ONT Datasheet

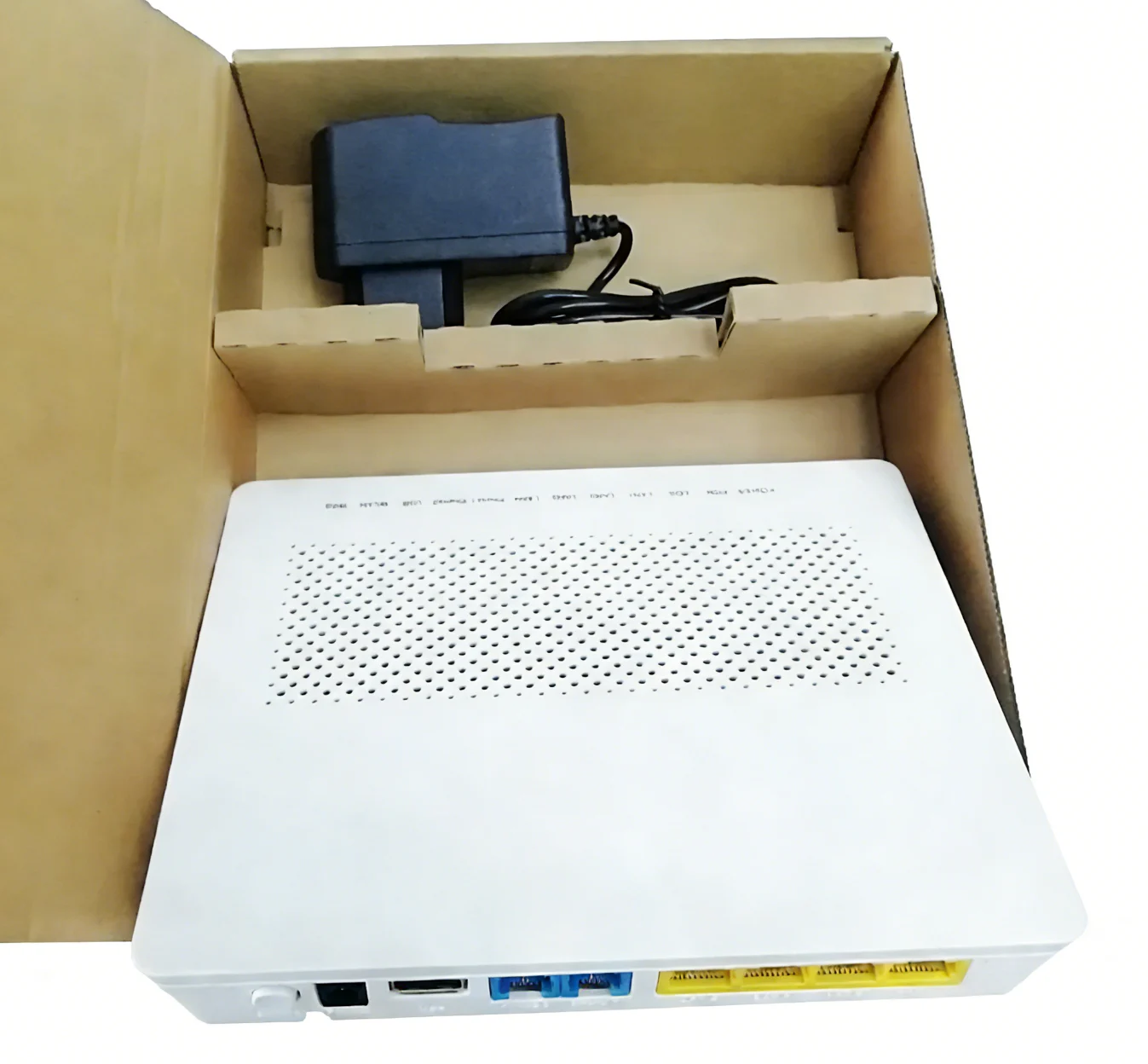

The HG8346M, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8346M provides two POTS ports, four GE/FE auto-adapting Ethernet ports and one Wi-Fi port. The HG8346M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8346M provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Device Parameters:
Dimensions (H x W x D) (mm) | 176 mm x 138.5 mm x 28 mm | System power supply | 11–14 V DC, 0.5 A |
Weight | < 500 g | Static power consumption | 5 W |
Operating temperature | 0°C to +40°C | Maximum power consumption | 15.5 W |
Operating humidity | 5% RH to 95% RH (non-condensing) | Ports | 4FE+2POTS+1USB+WiFi |
Power adapter input | 100–240 V AC, 50–60 Hz | Indicators | POWER/PON/LOS/LAN/TEL/USB /WLAN/WPS |
Technique Parameter：
GPON features | Class B+ optical module. |
Voice features | SIP and H.248 protocols. |
Multicast features | IGMP V2&V3 snooping/IGMP proxy. |
Wi-Fi features | 802.11b/g/n, certified by the Wi-Fi Alliance. |
NAT function | Internet, IPTV and VoIP services are automatically bound to ONT ports. |
Maintenance features | Local management using Web and remote management using TR069 and OMCI. |
Reliability features | Dual systems for software protection. |
Greenengery-saving features | Dynamic power consumption adjustment. |
