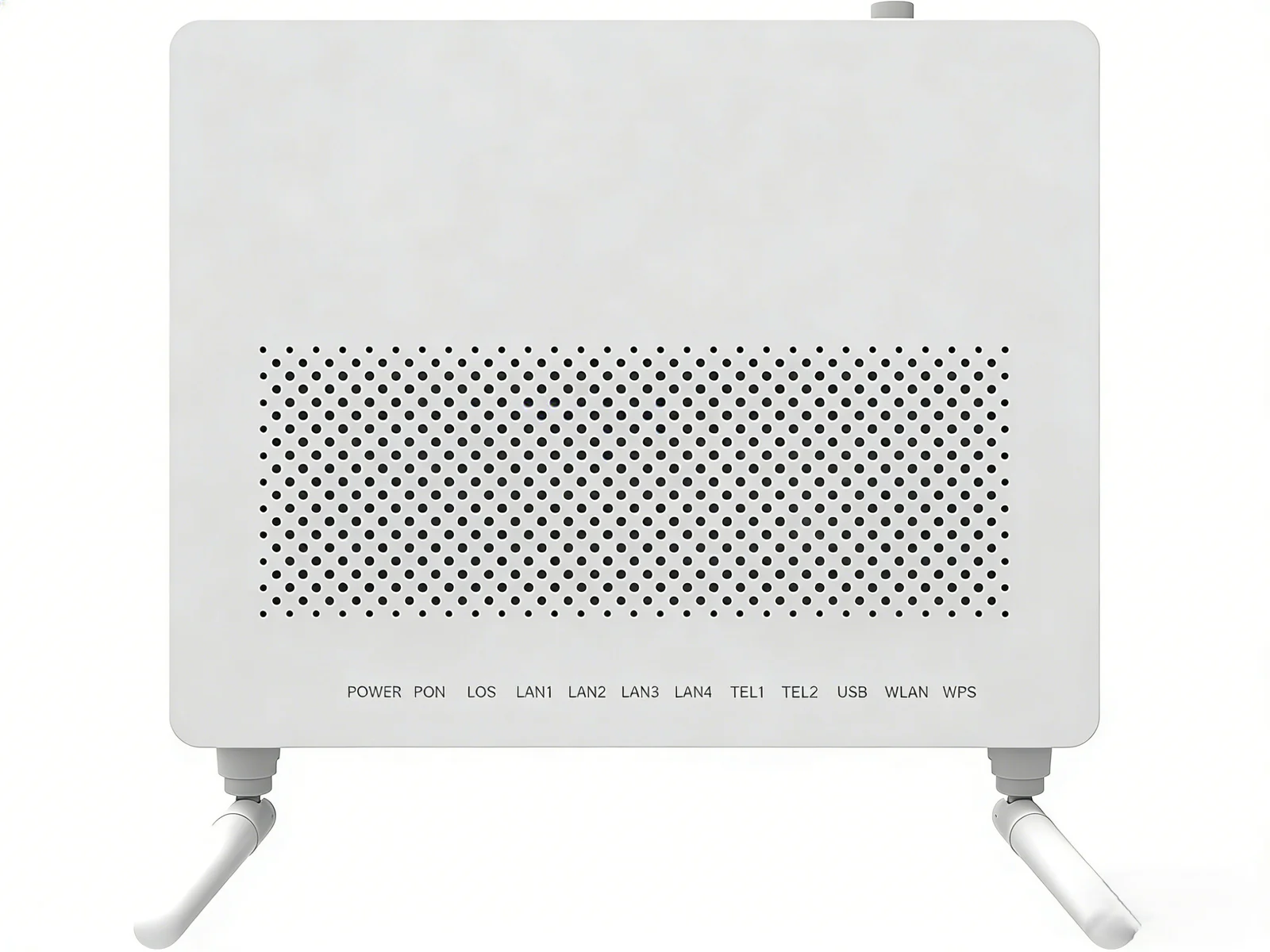

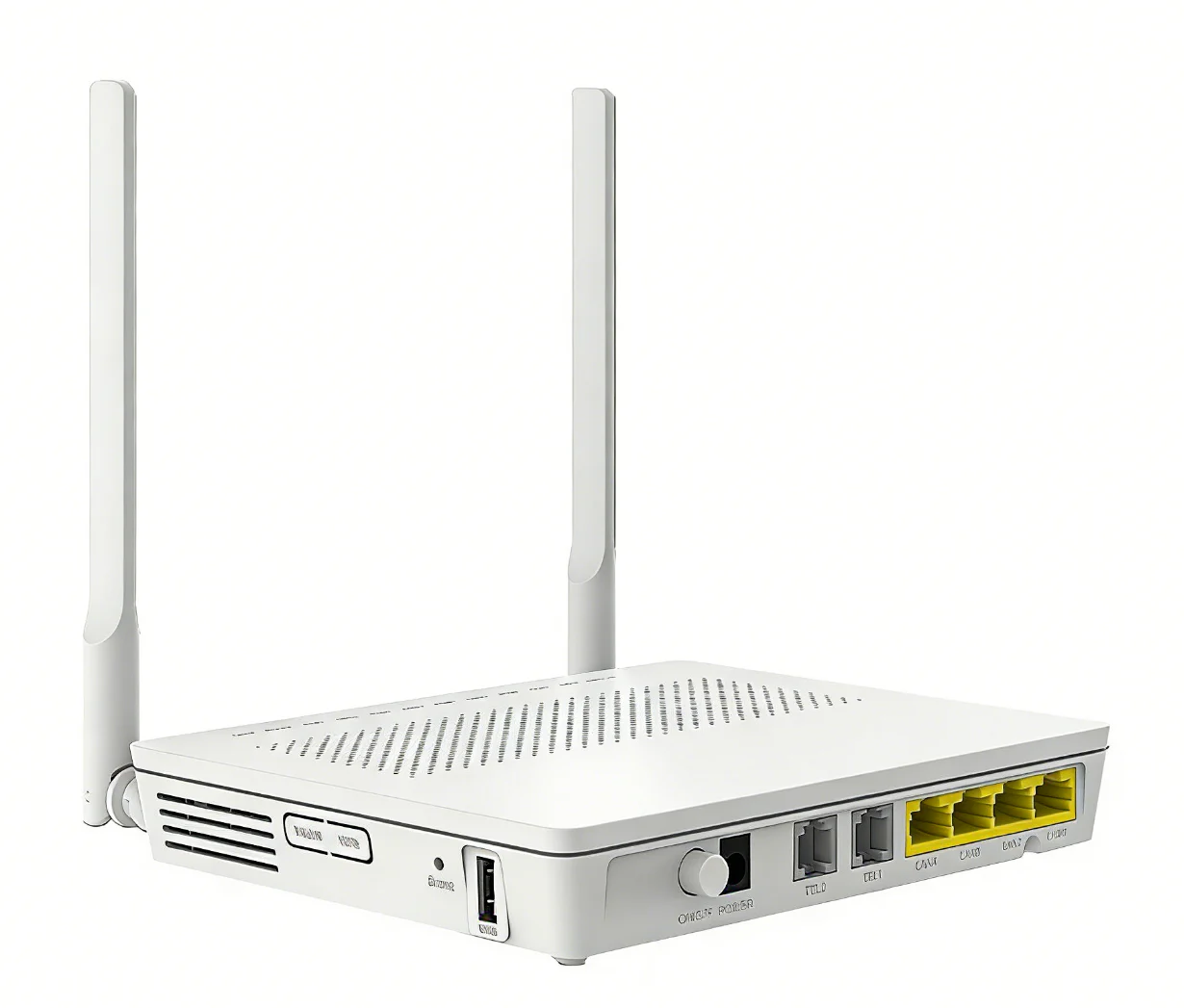

HG8245H Wifi Gpon ONU Datasheet
Product Description：
HG8245H GPON ONT , which is a leader in FTTH/ FTTO broadband access network field. They are properly manageable added with features such as high-bandwidth, high reliability, low power consumption and satisfy the users requirement to access broadband, voice, data and video etc.
The HG8245H, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.
The HG8245H features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8245H provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Product Features：
GPON Interface: 1 *GPON interface (SC/UPC)
Transmission Rate: 2.488Gbps downstream and 1.244bps upstream
LAN: 4GE with RJ-45 connector
WIFI :2.4G&5G wirless external antenna
VOIP: 2
USB: 1
Technique Parameter：
Technical items | Descriptions |
Fiber port | 1 GPON interface, 4GE+2POT+1USB+WIFI,SC single-mode, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Fiber interface | SC/UPC |
RX sensitivity | <-27dBm (1490nm) |
WLAN | IEEE802.11b/g/n,2*2 MIMO, 2.4G&5GWIFI,2*External antenna |
LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
Throughput | Downstream 950Mbps,Upstream 930Mbps |
ONT Detection and Isolation of Active/Passive Hooligans | YES |
L2 forwarding capability | 200 Mbit/s downstream (with any length packets) 200 Mbit/s upstream (with any length packets) |
IPv4 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction 1Gbit/s with any length packets in upstream direction |
IPv6 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction 1Gbit/s with any length packets in upstream direction |
Configuration method | NMS, Web, or TR069 |
Voice protocol | SIP, H.248 |
DC power | Adapter input: 100-240 V AC, 50 - 60 Hz ; Adapter output: 11 – 14 V DC, 1 A |
Button | Reset, power |
Power | ≤8W |
Operation | Working temperature: -0-+40℃ working humidity:5-95%(non-condensation) |
Dimension | 200*180*50mm(length*width*height) |
Net weight | ≤0.8Kg |
