DETAILED INTRODUCTION
Product overview and specifications
Description:

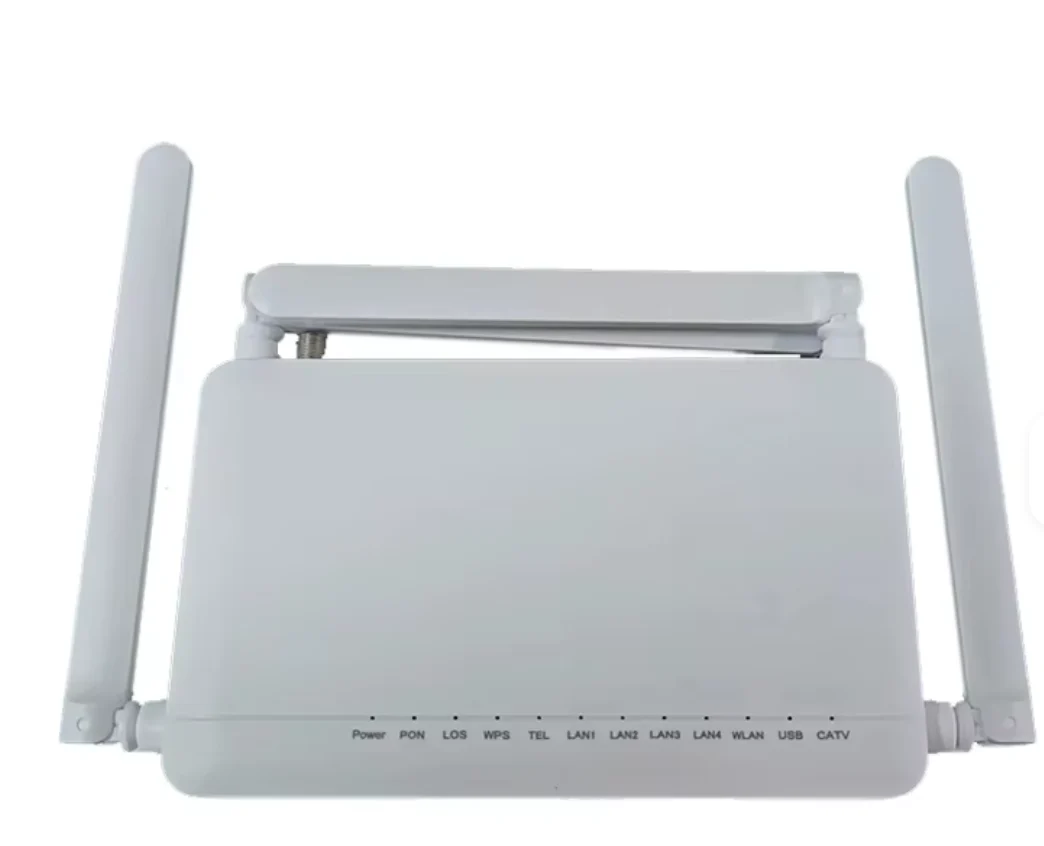

F668V/F668P FTTH is an ONT designed for FTTH application scenarios. With using the F668V/F668P, the home users can access data, video and voice services, and enjoy high-speed Internet access. It is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT) that is designed for high-end home users. It is well suited to fiber to the home (FTTH) scenarios and supports desktop mounting. At the network side, the device supports 2.488 Gbps downlink and 1.244 Gbps uplink. At the user side, it provides four GE ports, one POTS ports, one USB 2.0 port, one CATV port,and 2×2 802.11n@2.4GHz & 4×4 802.11ac@5GHz concurrent.
Specifications:
| Model | Parameter |
| Model | F668V/F668P |
| WAN | GPON |
| LAN | 4xGE,1xFXS,1USB; 2×2 802.11b/g/n Wi-Fi @2.4GHz; 4×4 802.11a/n/ac Wi-Fi @5GHz |
| Buttons | Reset, On/Off, WPS, Wi-Fi |
| LEDs | Power, PON, LOS, Internet, LAN1-4, Phone, 2.4G, 5G, WPS, USB |
| Power Supply | 12V DC, 1.5A |
| Dimensions | 220 mm*35 mm*160 mm (W*D*H) |
| Net Weight | 450g |
| Operating Temperature | 0°C – 40°C |
| Humidity | 5% – 95% |
| Certification | CE; Wi-Fi; RoHS |
Features:
- Provide four GE ports for HSI or HD VoD services.
- Provide one FXS ports for traditional telephone services.
- Provide one USB 2.0 port for file storage and sharing, print sharing and user configuration file fast recovery.
- Support 802.11b/g/n@2.4GHz & 802.11a/n/ac@5GHz dual-band concurrent Wi-Fi with up to gigabit speeds and excellent indoor coverage.
- User can connect PCs, IPTV STBs, CATV, tablet PC, smartphones, phones, faxes, and other terminals to the ZXHN F688 to enjoy all kinds of Internet services.
- enhances the value of operators’ networks.
- The highly reliable heat dissipation design guarantees stable operation.
- The dual image ensures uninterrupted services during software downloads or upgrades, thereby enhancing software reliability.
Product keywords and related features
F668P/F668V 4GE +POT +CATV +Wifi6 AX3000 Dual Band GPON ONUONUCompatiable ZTE ONUF668P/F668V4GE+POT+CATV+Wifi6AX3000DualBandGPON
