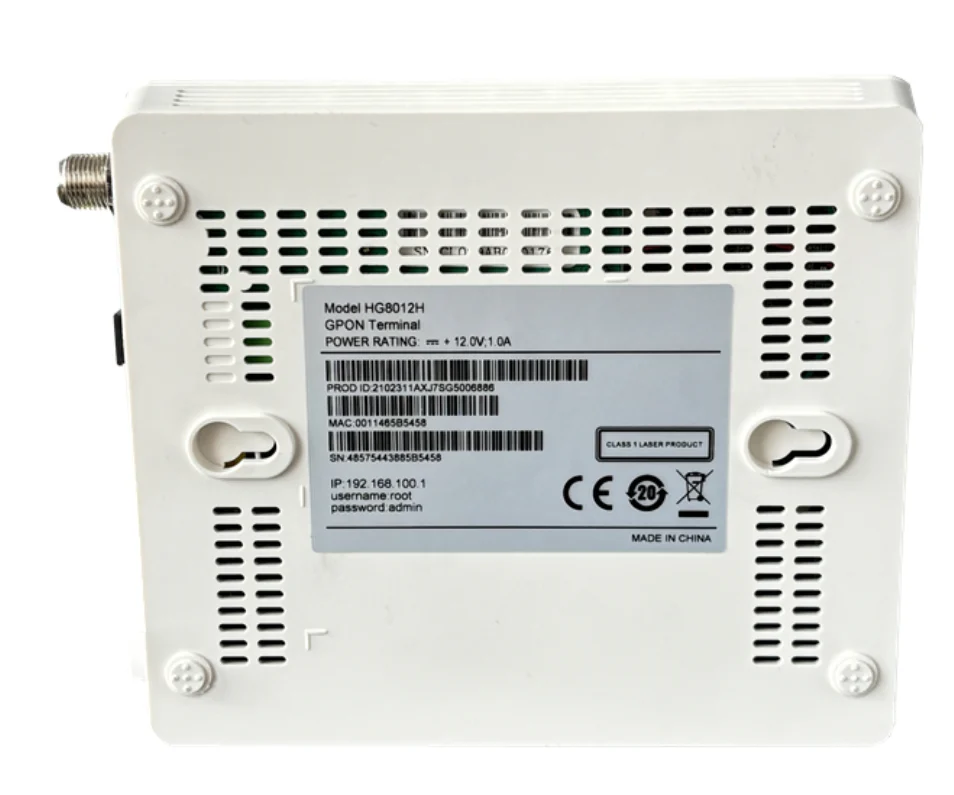

HG8012H 1GE Gpon Onu Datasheet
HG8012H FTTH is a bridging-type ONT used in all-optical access solution with one GE port and one RF port. This model implements ultra-broadband access through the GPON technology. The high-performance forwarding capability guarantees the service experience of CATV, data and HD video services, and gives users with ideal terminal solutions and future-oriented service support capabilities.
Specifications:
Model | HG8012H |
Ports | 1GE + 1CATV |
Power supply | 11–14 V DC, 1 A |
Power adapter input | 100 – 240 V AC, 50/60 Hz |
Dimensions (L x W x H) | 115 mm x 134 mm x 30 mm |
Operating temperature | 0°C to +40°C |
Operating humidity | 5% RH to 95% RH (non-condensing) |
Static power consumption | 3 W |
Maximum power consumption | 6 W |
Indicators | POWER/PON/LOS/LAN/CATV |
HG8012H FTTH Product Features
- Class B+
- Receiver sensitivity: -27 dBm
- Wavelengths: US 1310nm, DS 1490nm
- Flexible mapping between GEM Port and TCONT
- GPON: consistent with the SN or password authentication defined in G.984.3
- Ethernet Electrical Port
- Ethernet port-based VLAN tags and tag removal
- 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
- Bandwidth 54 MHz to 870 MHz
- Output resistance 75 ohms
- IGMP v2/v3 snooping
- MLD v1/v2 snooping
- Fast leave
- VLAN tag translation, transparent transmission, and removal for downstream
- IGMP/MLD protocol packet rate limitation
