DETAILED INTRODUCTION
Product overview and specifications
HN8145X6 10G Wifi6 Gpon ONU Datasheet
HN8145X6 FTTH is an intelligent Wi-Fi 6 routing-type 10G Optical Network Terminal with 4 GE ports, 1 POTS port, and 2 USB port, and 2.4G and 5G Wi-Fi connectivity. HN8145X6 adopts Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users, ensuring an exceptional experience for voice, data, and High Definition (HD) video services and future-oriented service support capabilities and visualized network management, Therefore, HN8145X6 10G FTTH supports enterprises construct powerful all-optical access solutions.
Features
- Receiver sensitivity: –27 dBm to –29 dB
- Overload optical power: –8 dBm
- Wavelengths: US 1310 nm, DS 1490 nm
- Wavelength Blocking Filter (WBF) of G.984.5
- Flexible mapping between the GEM port and TCONT
- GPON: consistent with the SN or password authentication defined in G.984.3
- SR-DBA and NSR-DBA
- Type B (single-homing and dual-homing)
- Ethernet port-based VLAN tags and tag removal
- 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
- QinQ VLAN
- Limit on the number of learned MAC addresses
- MAC address learning
- Auto port speeds (10/100/1000 Mbit/s)
- Maximum REN: 4
- 711A/μ, G.729a/b, and G.722 encoding/decoding
- 30/T.38/G.711 fax mode
- Emergency calls (with the SIP protocol)
Parameter
Item | HN8145X6 |
Network-side Port | GPON/EPON |
User-side Ports | 4*GE+1*POTS+2*USB+2.4G/5G 11ax WiFi (Wi-Fi 6) |
Static power consumption | 5.3 W |
Max. power consumption | 18 W |
WLAN | 2.4GHZ: 802.11n 5GHZ: 802.11ax |
Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz System power supply: 11–14 V DC, 1.5 A |

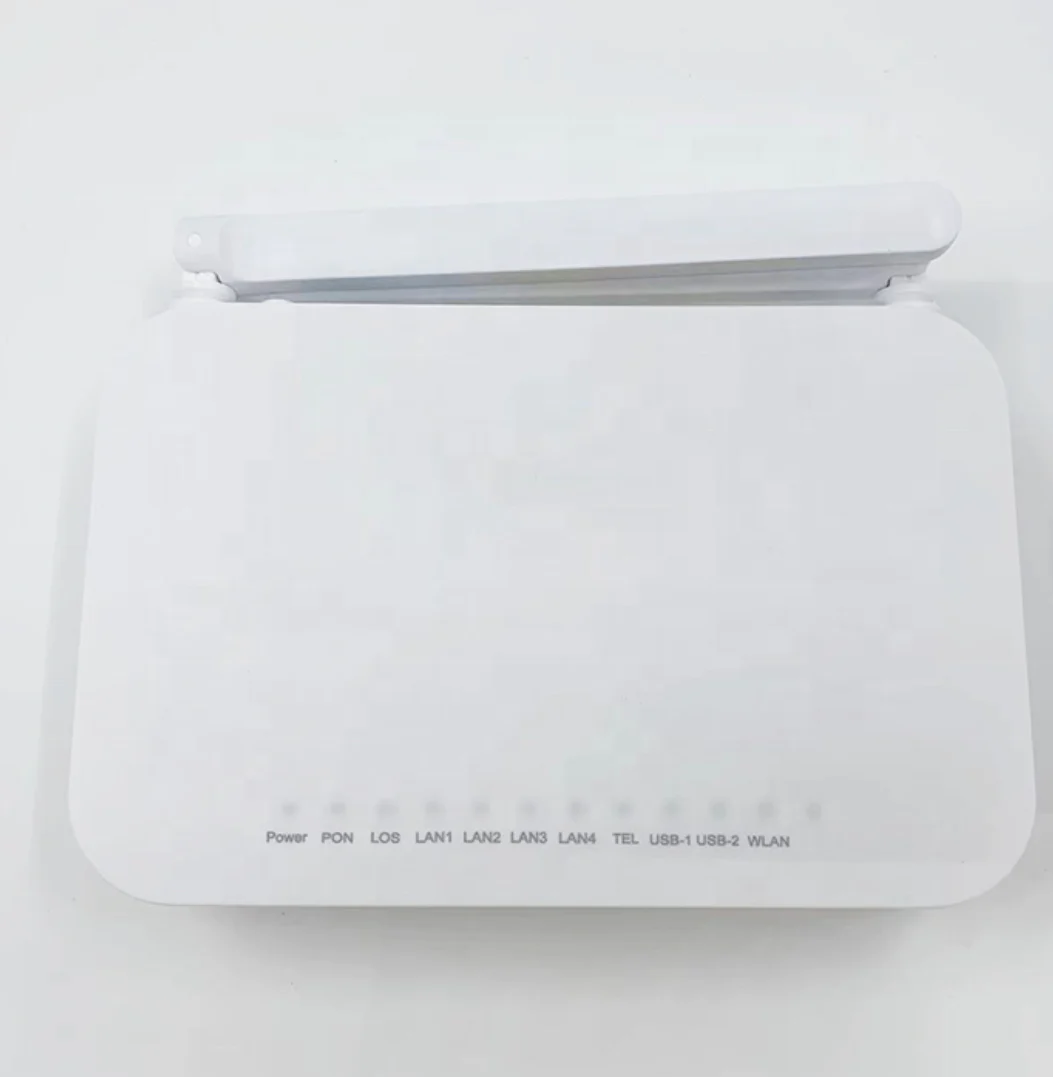

Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
Working environment | Operating temperature: 0ºC to 40ºC Environment humidity: 5% to 95% (noncondensing) |
Dimensions (length x width x height) | 195 mm x 125 mm x 35 mm |
Weight | About 370 g |
