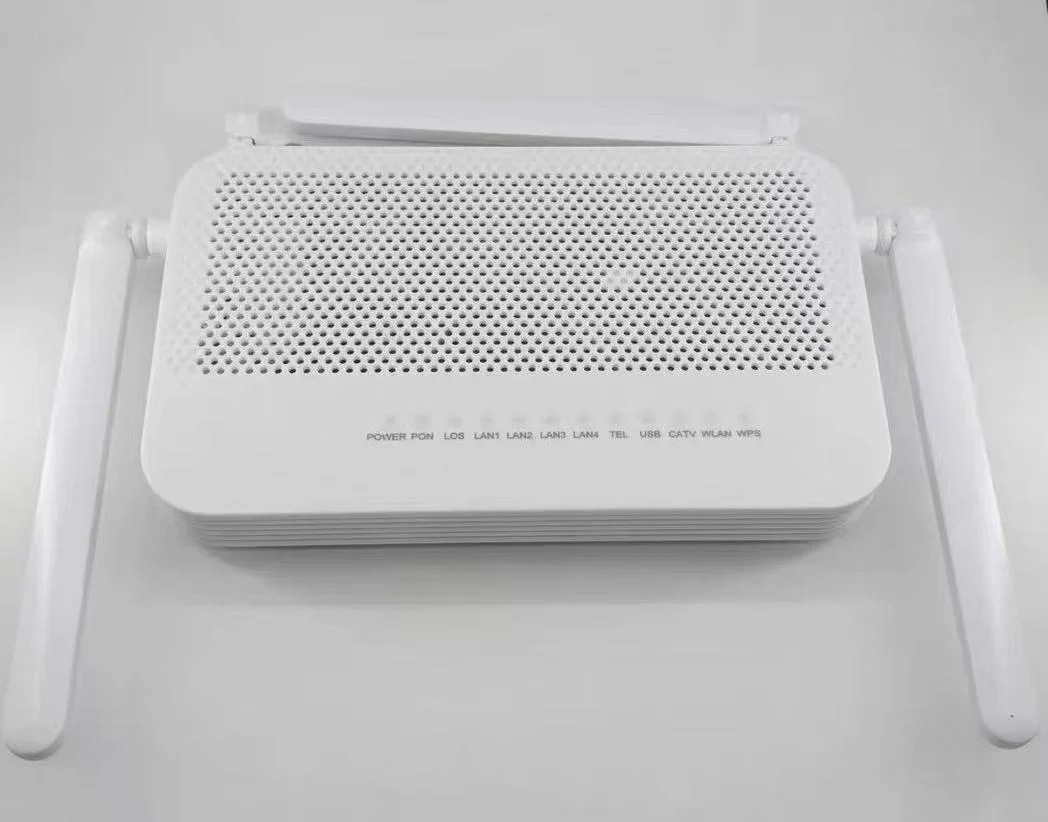

EG8247W5 Dual Band WIFI +CATV Gpon/Epon Onu Datasheet
Product Description:
EG8247W5 FTTH provides four GE ports, one POTS ports, one CATV port, one USB port, and supports 2.4G&5G WiFi,. At the same time, the ONT features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet, and HD video services. These features make EG8247W5 a perfect option for broadband access.
Specifications
Model | EG8247W5 |
Type | Routing |
Dimensions (H x W x D) | 199 mm x 135 mm x 30 mm (without antenna and pads) |
Operating Temperature | 0°C to 40°C |
Operating Humidity | 5% RH to 95% RH (non-condensing) |
Power Adapter Input | 100V to 240V AC, 50 Hz/60 Hz |
System Power Supply | 11V to 14V DC, 1A |
Network-Side Ports | GPON |
Connector | SC/APC |
User-Side Ports | 4*GE+1*POTS+1*USB+CATV+2.4G&5G WiFi, 5dBi |
Indicators | POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS |
Product Features
- Plug-and-Play
Configurations are automatically delivered by the network management system so on-site commissioning is not required.
- Comprehensive Triple-Play Service
ONT provides abundant ports to implement multiple access services, including home network-attached storage, Internet access, and video services, providing users with a comprehensive triple-play service.
- Energy Efficient
Integrated PON, voice, gateway, and LSW modules, with up to 25 percent power savings.
