DETAILED INTRODUCTION
Product overview and specifications

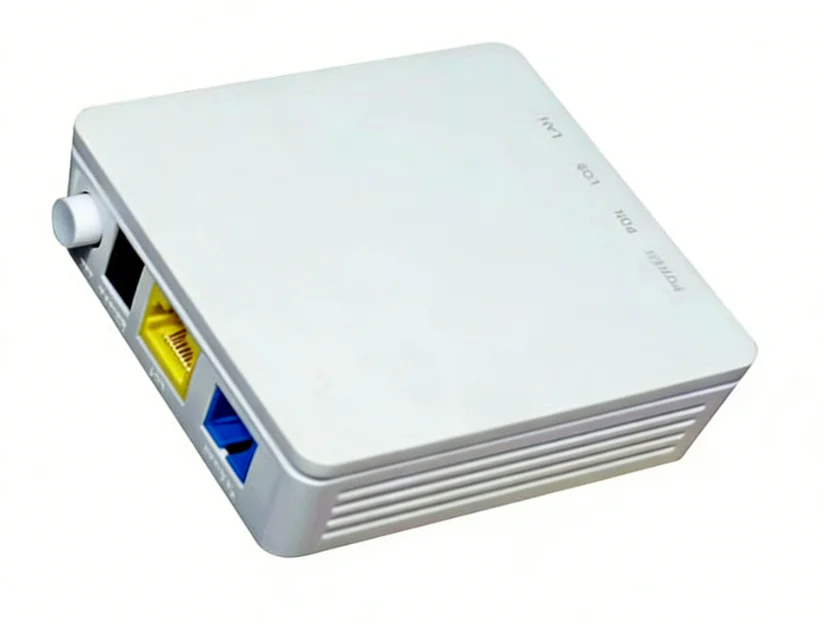

HG8310M 1GE EPON GPON XPON ONU Datasheet
Product Description:
The HG8310M is an indoor optical network terminal (ONT) in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8310M provides one GE Ethernet port. The HG8310M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
Product Features:
Port: 1GE.
Plug-and-play (PnP):
Internet and IPTV services can be deployed by one click on the NMS and on-site configuration is not required.
Remote diagnosis:
Remote fault locating is implemented by the precise positioning feeder and drop cables, and identifying problems of software and hardware.
High speed forwarding:
GE line rate forwarding.
Applications & Benefits
high-performance forwarding capability provides an optimal terminal solution and future oriented service supporting capabilities for ftth deployment.plug-and-play makes service provisioning easier and more quickly.
Specification:
Technical items | Descriptions |
Fiber port | 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Fiber interface | SC/PC |
RX sensitivity | <-28dBm (1490nm) |
WLAN | IEEE802.11b/g/n,300Mbps, a built-in antenna |
LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
Throughput | Throughput can reach 900Mbps or more |
DC power | 12V 1A, external AC-DC power adapter |
Button | Reset, power |
Power | ≤8W |
Operation | Working temperature: -5-+55℃ working humidity:10-90%(non-condensation) |
Storage | Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation) |
Dimension | 130*105*30mm(length*width*height) |
Net weight | ≤0.2Kg |
